Xe nâng komatsu xăng/gas 4-5 Tấn, FG40ZTU-10, FG45TU-10, FG50ATU-10

Thêm vào giỏ hàng

Xe nâng komatsu xăng/gas 4-5 Tấn CX50 Series

  • Tire typePneumatic
  • Power typeLPG/Dual fuel
  • Capacity8,000 - 11,000 lbs.
View all specs
Request a quote Find a dealer
Download brochure

Features and benefits


Hydraulics that do more than lift

To minimize hydraulic loss and reduce the engine load, the CX50 Series uses the CLSS hydraulic system, technology proven in Komatsu’s rugged construction machines. Reducing the engine’s load means it uses less fuel than typical gear pump-driven hydraulic trucks.
CX50_FB2_Acr34284395166721892155.psd

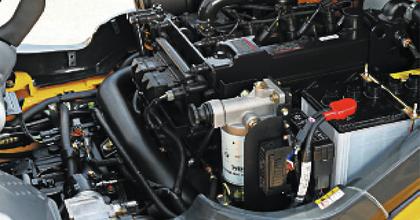

Reduces costs from the ground up

The CX50’s sealed wet disc brake system is warranted to go 10,000 hours without maintenance, eliminating the downtime and added cost of frequent shoe replacements. The engine oil needs replacing only every 500 hours, helping to further reduce operating costs.
CX50_FB3_Acr34284395166722729163.psd

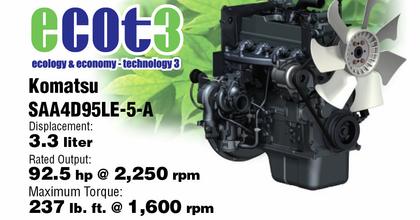

Clean burning engine

The CX50’s electronically controlled engine uses a 3-way catalytic system and clean burning LPG. All models meet applicable EPA emission standards.
CX50_FB4_Acr3428439516672-2557960.psd

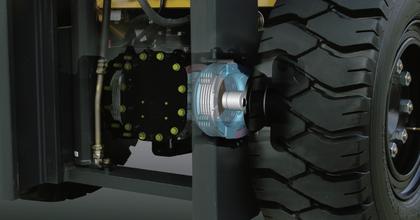

Brakes built for a variety of conditions

Smooth, stable braking and fade resistance in a variety of conditions. Unlike conventional drum and shoe braking systems, the CX50 Series features a wet disc brake system sealed with oil to block dust and water-resistant components.
CX50_FB5_Asset 1.psd

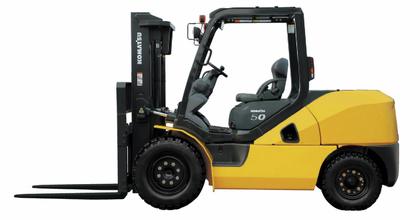

Robust hydraulic and electrical systems

Separate hydraulic and electrical systems improve reliability and service accessibility. O-ring face seals on critical hydraulic connections reduce the potential for leaks. Water- and dust-resistant connectors join the main harnesses and the system controller.
CX50_FB6_2Asset 1.psd

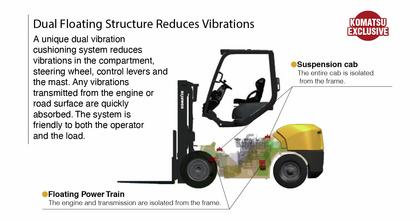

Advanced Ergonomic Design

Designed to improve operator comfort and reduce fatigue, the Komatsu Komfort Zone is a dual floating structure: dampening mounts protect the frame from engine vibration; additional mounts isolate operators from the frame; and the sealed floorboard reduces engine noise and heat.

Specifications for CX50

Expand all
US systemMetric
General
GENERAL FG40ZTU-10 FG40TU-10 FG45TU-10 FG50ATU-10
Power Type LPG LPG LPG LPG
Operation Type Sit-Down Sit-Down Sit-Down Sit-Down
Capacity @ 24 in Load Center 8,000 lbs. 9,000 lbs. 10,000 lbs. 11,000 lbs.
Load Distance From
Center Axle (2 Stage)		 21.3 in 22.8 in 23.2 in 22.6 in
Wheelbase 70.9 in 78.7 in 78.7 in 78.7 in
Weight
WEIGHT FG40ZTU-10 FG40TU-10 FG45TU-10 FG50ATU-10
Service Weight 12,507 lbs. 13,673 lbs. 14,960 lbs. 15,928 lbs.
Axle Loading - Loaded Front 18,766 lbs. 19,547 lbs. 21,813 lbs. 23,727 lbs.
Axle Loading - Loaded Rear 2,541 lbs. 2,926 lbs. 3,047 lbs. 3,201 lbs.
Axle Loading - Unloaded Front 4,873 lbs. 5,555 lbs. 6,017 lbs. 6,270 lbs.
Axle Loading - Unloaded Rear 7,634 lbs. 8,118 lbs. 8,943 lbs. 9,658 lbs.
Tires
TIRES FG40ZTU-10 FG40TU-10 FG45TU-10 FG50ATU-10
Tire Type Pneumatic Pneumatic Pneumatic Pneumatic
Tire Size - Front 250 - 15 - 16PR (I) 300 - 15 - 18PR (I) 300 - 15 - 18PR (I) 300 - 15 - 18PR (I)
Tire Size - Rear 7 - 12 - 12PR (I) 7 - 12 - 12PR (I) 7 - 12 - 12PR (I) 7 - 12 - 14PR (I)
Number of Wheels, Front/Rear 2x / 2  2X / 2 2X / 2 2X / 2
Tread - Front 43.9 in 45.3 in 45.3 in 45.3 in
Tread - Rear 44.1 in 44.1 in 44.1 in 44.1 in
Dimensions
DIMENSIONS FG40ZTU-10 FG40TU-10 FG45TU-10 FG50ATU-10
Tilting Angle, Forward/Backward 6 / 12 deg 6 / 12 deg 6 / 12 deg 6 / 12 deg
Mast Height - Lowered 82.7 in 106.7 in 98.4 in 101.8 in
Mast Height - Extended 162.6 in 162.6 in 162.6 in 171.1 in
Free Lift Height 6.1 in 6.3 in 5.7 in 5.7 in
Maximum Fork Height 118.1 in 118.1 in 118.1 in 118.1 in
Height Overhead Guard 87 in 88.6 in 88.6 in 88.6 in
Length, with Standard Forks 158.5 in 166.1 in 168.1 in 173.4 in
Length to Fork Face 116.3 in 124 in 126 in 125.4 in
Overall Width at Drive Tires 53.1 in 57.1 in 57.1 in 57.1 in
Forks,
Thickness x Width x Length		 2 x 5.9 x 42.1 in 2.2 x 5.9 x 42.1 in 2.2 x 5.9 x 42.1 in 2.2 x 5.9 x 48 in
Carriage Width/ITA Class 46.9 in / III 46.9 in / III 46.9 in / III 50 in / IV
Ground Clearance,
Under Mast		 5.5 in 5.7 in 5.7 in 5.7 in
Ground Clearance,
Center of Wheelbase		 6.9 in 8.7 in 8.7 in 8.7 in
Right Angle Stacking Aisle 122.9 in 131.9 in 134.2 in 134.8 in
Turning Radius, Outside 101.6 in 109.1 in 111 in 112.2 in
Performance
PERFORMANCE FG40ZTU-10 FG40TU-10 FG45TU-10 FG50ATU-10
Travel Speed,
Loaded - 1st/ 2nd		 11.2 / NA mph 11.2 / NA mph 9.6 / 14.3 mph 9.0 / 14.6 mph
Travel Speed,
Unloaded - 1st/ 2nd		 11.8 / NA mph 11.8 / NA mph 10.3 / 14.9 mph 9.6 / 15.2 mph
Lifting Speed,
Loaded/Unloaded		 100.4 / 100.4 fpm 100.4 / 100.4 fpm 86.6 / 86.6 fpm 86.6 / 86.6 fpm
Lowering Speed,
Loaded/Unloaded		 98.4 / 98.4 fpm 98.4 / 98.4 fpm 98.4 / 98.4 fpm 98.4 / 98.4 fpm
Maximum Drawbar Pull,
Loaded		 5,395 lbs. 5,395 lbs. 6,295 lbs. 6,295 lbs.
Maximum Gradeability 28% 25% 26% 25%
Service Brake,
Operation/Control		 Foot / Hydraulic Foot / Hydraulic Foot / Hydraulic Foot / Hydraulic
Parking Brake,
Operation/Control		 Hand / Mechanical Hand / Mechanical Hand / Mechanical Hand / Mechanical
Steering Type FHPS FHPS FHPS FHPS
Drive
DRIVE FG40ZTU-10 FG40TU-10 FG45TU-10 FG50ATU-10
Engine Manufacturer /
Engine Model		 GCT EBT-TB45-1A GCT EBT-TB45-1A GCT EBT-TB45-1A GCT EBT-TB45-1A
Rated Output (SAE Net) 83.8 HP @ 2,400 rpm 92.5 HP @ 2,250 rpm 92.5 HP @ 2,250 rpm 92.5 HP @ 2,250 rpm
Maximum Torque (SAE Net) 201 lbs.-ft. @ 1,600 rpm 201 lbs.-ft. @ 1,600 rpm 201 lbs.-ft. @ 1,600 rpm 201 lbs.-ft. @ 1,600 rpm
# of Cylinders /
Displacement		 6 / 273 in3 6 / 273 in3 6 / 273 in3 6 / 273 in3
Fuel Tank Capacity 20.1 US gal 25.9 US gal 25.9 US gal 25.9 US gal
Other
OTHER FG40ZTU-10 FG40TU-10 FG45TU-10 FG50ATU-10
Relief Pressure, Maximum 2,988 psi 2,988 psi 2,988 psi 2,988 psi
Transmission TORQFLOW TORQFLOW TORQFLOW TORQFLOW
