Xe nâng dầu komatsu 10 -16 Tấn

Mã sản phẩm: FH100/160
Thương hiệu: Japan

Vui lòng liên hệ

Tình trạng: Còn hàng

Xe nâng dầu komatsu 10 -16 Tấn,

Thêm vào giỏ hàng

Chi tiết sản phẩm
Hướng dẫn mua hàng
Bình luận

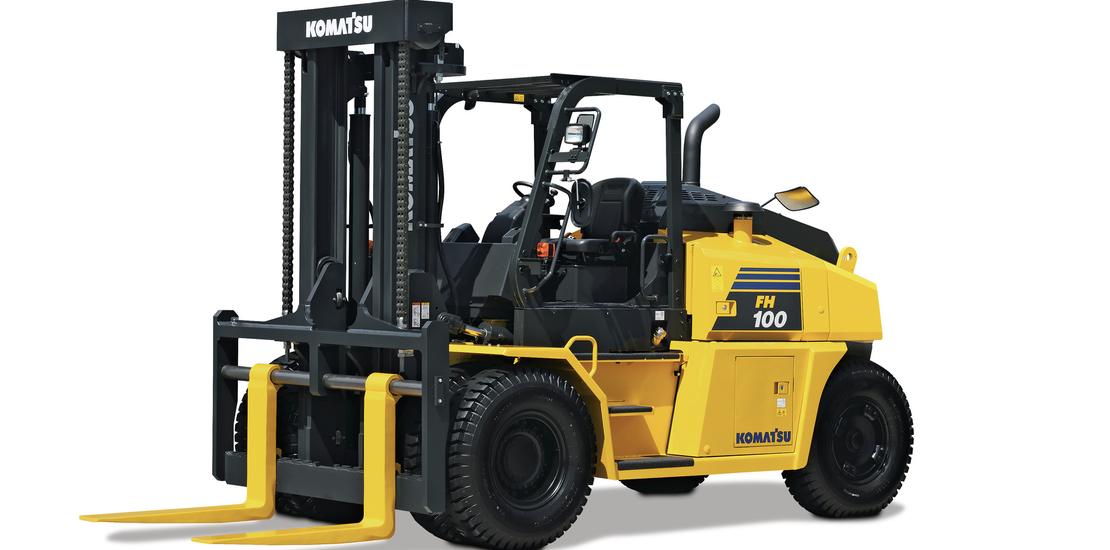

FH100/160

Tire typePneumatic
Power typeDiesel
Capacity22,000 - 35,000 lbs.

View all specs

Request a quote Find a dealer

Download brochure Download spec sheet Download sell sheet

Features and benefits

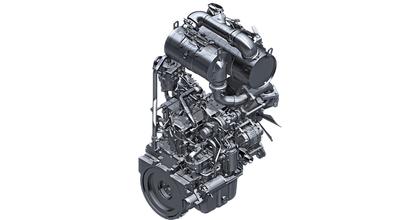

Forklift_literature link_FG_AX50_BX50_engine_driveline_fga-20am001_hr_sm.psd

Highly efficient proprietary diesel technology

The FH family diesel engines are designed to reduce fuel use and significantly reduce exhaust particulate matter. They incorporate Komatsu proprietary technologies like Komatsu Diesel Oxidation Catalyst, Variable Flow Turbocharger and much more.

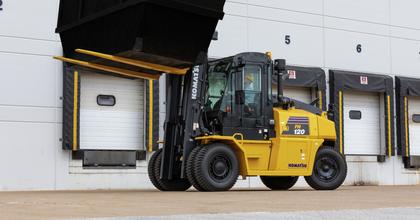

Forklift_FH120_Chicago Illinois_JS_20Apr21_20210415_kom__067.psd

Makes engine revving unnecessary

Featuring a variable displacement pump with closed-center load sensing system, the FH family allows for controlled fluid flow in the hydraulic system while lifting, resulting in no engine revving and reduced fuel consumption.

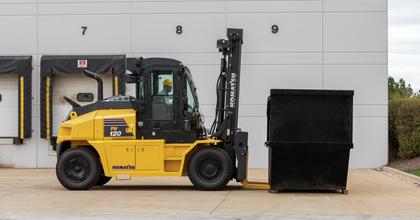

Forklift_FH120_Chicago Illinois_JS_20Apr21_20210415_kom__040.psd

Designed to lower operating costs

The highly efficient, electronically controlled hydrostatic transmission (HST) hydraulic pump and motor system increases operator control, minimizes power transmission loss, boosts fuel savings and reduces environmental impact.

Best-in-class warranty

Expect years of trouble-free service. But just in case, Komatsu stands behind the product with the longest and strongest warranty in the industry, up to 24 months and unlimited hours, 60mo/8k hours drive train. That’s coverage you can count on.

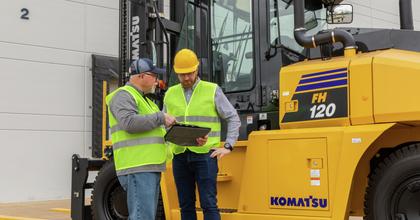

Forklift_FH120_Chicago Illinois_JS_20Apr21_20210415_kom__028.psd

Technology that helps you manage your fleet

Komatsu’s Komtrax proprietary wireless tracking and reporting system allows the forklift to communicate daily usage, fuel consumption, operator productivity and more. Easy to use and web-based, it gives you secure usage data anywhere, anytime.

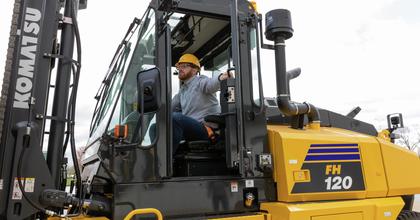

Forklift_FH120_Chicago Illinois_JS_20Apr21_20210415_kom__060.psd

Engineered to exacting standards

Komatsu Engineering Standards (KES) are design and manufacturing standards that exceed those required in the industry. Through KES, we strive to deliver unmatched quality and durability across all our mining, construction and forklift machines.

Specifications for FH100/160

Close all

US systemMetric

Characteristics

Model	FH100-1	FH120-1	FH135-1	FH160-1
Power Type	Diesel	Diesel	Diesel	Diesel
Operation Type	Sit Down	Sit Down	Sit Down	Sit Down
Rated Capacity	22,000 lbs.	26,400 lbs.	30,000 lbs.	35,000 lbs.
Rated Load Center	24 in	24 in	24 in	24 in
Load Distance, Front Axle to Fork Face	30.3 in	30.3 in	31.9 in	32.1 in
Wheelbase	120.1 in	120.1 in	120.1 in	120.1 in

Weight

Model	FH100-1	FH120-1	FH135-1	FH160-1
Service Weight	32,055 lbs.	35,737 lbs.	38,570 lbs.	42,781 lbs.
Axle Loading / Loaded front	47,300 lbs.	53,958 lbs.	59,161 lbs.	67,825 lbs.
Axle Loading / Loaded rear	5,479 lbs.	6,030 lbs.	6,746 lbs.	7,804 lbs.
Axle Loading / Unloaded front	17,273 lbs.	18,816 lbs.	19,191 lbs.	19,731 lbs.
Axle Loading / Unloaded rear	14,782 lbs.	16,920 lbs.	19,379 lbs.	23,049 lbs.

Tires

Model	FH100-1	FH120-1	FH135-1	FH160-1
Tire Type	Pneumatic	Pneumatic	Pneumatic	Pneumatic
Tire Size - Front	9.00-20-14PR	10.00-20-16PR	11.00-20-16PR	12.00-20-18PR
Tire Size - Rear	9.00-20-14PR	10.00-20-16PR	11.00-20-16PR	12.00-20-18PR
Number of Wheels, Front / Rear (x=Driven)	4x/2	4x/2	4x/2	4x/2
Tread - Front	66.9 in	66.9 in	69.7 in	69.7 in
Tread - Rear	74.8 in	74.4 in	74.4 in	73.6 in

Dimensions

Model	FH100-1	FH120-1	FH135-1	FH160-1
Tilting Angle, Forward / Backward	6/12 degree	6/12 degree	6/12 degree	6/12 degree
Mast Height, Lowered	133.5 in	148.0 in	148.4 in	149.2 in
Standard Free Lift	0	0	0	0
Standard Lift Height	157.5 in	157.5 in	157.5 in	157.5 in
Mast Height, Extended	212.6 in	227.2 in	227.6 in	228.3 in
Height Overhead Guard	113.4 in	114.2 in	114.6 in	115.4 in
Length, with Standard Forks	231.3 in	231.3 in	242.1 in	242.3 in
Length to Fork Face	177.4 in	177.4 in	188.2 in	188.4 in
Width, at Tire, Double	95.7 in	95.7 in	95.7 in	97.6 in
Forks - Thickness x Width x Length	3.0 x 6.7 x 53.9 in	3.0 x 7.3 x 53.9 in	3.1 x 7.3 x 53.9 in	3.5 x 8.3 x 53.9 in
Fork Carriage Class	Pin Mount	Pin Mount	Pin Mount	Pin Mount
Width, Fork Carriage	84.0 in	83.9 in	87.0 in	87.0 in
Ground Clearance, Under Mast	10.2 in	10.2 in	10.6 in	11.0 in
Ground Clearance, Center of Wheelbase	13.1 in	14.0 in	14.2 in	15.0 in
Turning Radius	165.4 in	165.4 in	173.6 in	173.6 in

Performance

Model	FH100-1	FH120-1	FH135-1	FH160-1
Travel Speed, Loaded	14.9 mph	14.9 mph	14.9 mph	13.7 mph
Travel Speed, Unloaded	15.5 mph	15.5 mph	16.2 mph	14.3 mph
Lifting Speed, Loaded	88.6 fpm	79.7 fpm	66.9 fpm	60.0 fpm
Lifting Speed, Unloaded	93.5 fpm	84.6 fpm	69.9 fpm	64.0 fpm
Lowering Speed, Loaded	86.6 fpm	78.7 fpm	78.7 fpm	85.6 fpm
Lowering Speed, Unloaded	108.3 fpm	98.4 fpm	86.6 fpm	78.7 fpm
Maximum Drawbar Pull	17,175 lbs.	16,905 lbs.	16,501 lbs.	18,299 lbs.
Maximum Gradeability	30 %	25 %	22 %	21 %
Service Brake, Operation / Control	Foot/Hydraulic	Foot/Hydraulic	Foot/Hydraulic	Foot/Hydraulic
Parking Brake, Operation / Control	Hand/Mechanical	Hand/Mechanical	Hand/Mechanical	Hand/Mechanical
Steering Type	FHPS	FHPS	FHPS	FHPS

Engine

Model	FH100-1	FH120-1	FH135-1	FH160-1
Komatsu engine	SAA4D107E-3-A	SAA4D107E-3-A	SAA4D107E-3-A	SAA4D107E-3-A
Rated Output (SAE Net)	100 kW	100 kW	100 kW	100 kW
Rated RPM	2,200 min-1	2,200 min-1	2,200 min-1	2,200 min-1
Maximum Torque (SAE Net)	620 HP	620 HP	620 HP	620 HP
No. Of Cylinders / Displacement	4 / 272 in³	4 / 272 in³	4 / 272 in³	4 / 272 in³
Fuel Tank Capacity	73.9 US gal	73.9 US gal	73.9 US gal	73.9 US gal

Other

Model	FH100-1	FH120-1	FH135-1	FH160-1
Relief Pressure for Attachment	3,133 psi	3,133 psi	3,133 psi	3,133 psi
Hydraulic Tank Capacity	59.4 US gal	59.4 US gal	59.4 US gal	59.4 US gal
Transmission	Hydrostatic	Hydrostatic	Hydrostatic	Hydrostatic
