Xe nâng komatsu xăng/gas 2.0 -3.2 Tấn

Xe nâng komatsu xăng/gas 2.0 -3.2 Tấn

  • BX50 Series
  • Japan
Vui lòng liên hệ
Còn hàng

Xe nâng komatsu xăng/gas 2.0 -3.2 Tấn, FG20ST-16, FG25SHT-16, FG30SHT-16, FG32SHT-16.

Thêm vào giỏ hàng

BX50 Series

  • Tire typeCushion
  • Power typeLPG
  • Capacity4,000 - 6,500 lbs.
View all specs
Request a quote Find a dealer
BX50_Series_Forklift_KOM101_00_EV2 (1)



Features and benefits

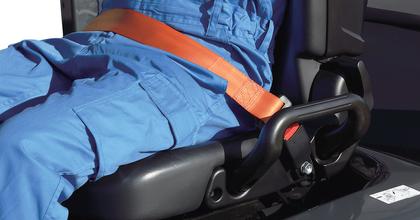

Forklift_literature link_FH50_seat belt_2_b06_kai_e_cut.eps

Enhanced safety for employees and goods

The Komatsu Operator Presence System (KOPS) Plus, standard with BX50 series, locks out lift, lower, tilt and travel functions when the operator leaves the seat for more than three seconds. The forks cannot lower while the key is in the off position.

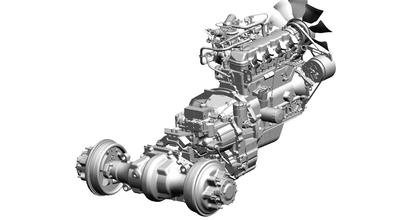

Forklift_literature link_FG_AX50_BX50_engine_driveline_fga-20am001_hr_sm.psd

High-efficiency drivetrain

Our expertise in construction is behind the BX50’s full floating drive train. High torque delivered by powerful engines is channeled through a heat dissipating aluminum transmission case and a rugged dust- and leak-resistant, double-seal U-joint design.

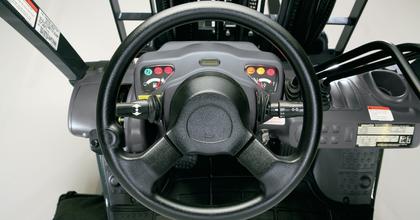

Forklift_literature link_FG_AX50_2211.eps

Multiple solutions to reduce operator fatigue

The fully hydrostatic power steering (FHPS) system offers you easy steering even at slow speeds and is engineered to eliminate kickback. Further improving operator feel are a small-diameter steering wheel and optional spinner knob for one-handed control.

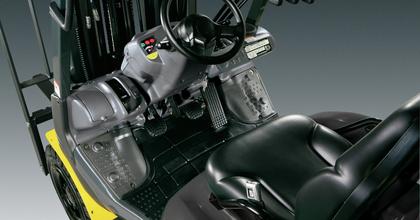

Forklift_literature link_FG_AX50_2222.eps

Advanced ergonomic design

Designed to improve operator comfort and reduce fatigue, the Komatsu Komfort Zone is a dual floating structure: dampening mounts protect the frame from engine vibration; additional mounts isolate your operators from the frame. Sealed floorboard reduces engine noise and heat.

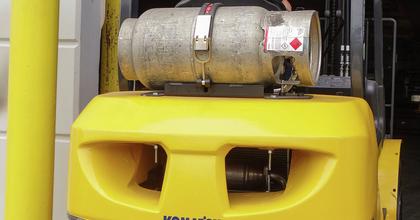

Forklift_AX50_FB5_FG25T_Ctwt Airflow.psd

Angled ports to manage exhaust and dust

Hot engine air, dust and exhaust can affect operators over time. The BX50 series’ angled ex-haust ports in the counterweight aim exhaust away while traveling in reverse. Exhaust vents low on the counterweight point away from the ground and don’t stir up dust.

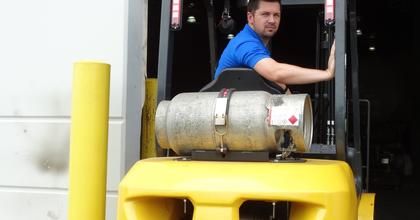

Forklift_AX50_FB6_FG25T_Ctwt_Driving in Reverse.psd

Excellent sightlines front and rear

An unrestricted view of the fork tips and surroundings for the operator. The thoughtfully de-signed EZ view mast, console and low-profile dash provide outstanding forward visibility. Upper corners of the counterweight are angled for clear sightlines in reverse.

Specifications for BX50

Expand all
US systemMetric
General
GENERAL FG20ST-16 FG25ST-16 FG25SHT-16 FG30SHT-16 FG32SHT-16
Power Type LPG LPG LPG LPG LPG
Operation Type Sit-Down Sit-Down Sit-Down Sit-Down Sit-Down
Capacity @ 24 in.
Load Center		 4,000 lbs. 5,000 lbs. 5,000 lbs. 6,000 lbs. 6,500 lbs.
Load Distance From
Center Axle (2 Stage)		 16.9 in 16.9 in 16.9 in 17.3 in 17.3 in
Wheelbase 55.1 in 55.1 in 55.1 in 57.1 in 57.1 in
Weight
WEIGHT FG20ST-16 FG25ST-16 FG25SHT-16 FG30SHT-16 FG32SHT-16
Service Weight 7,300 lbs. 8,180 lbs. 8,180 lbs. 9,440 lbs. 9,920 lbs.
Axle Loading,
Loaded Front		 9,820 lbs. 11,330 lbs. 11,330 lbs. 13,260 lbs. 14,000 lbs.
Loaded Rear 1,480 lbs. 1,850 lbs. 1,850 lbs. 2,180 lbs. 2,430 lbs.
Unloaded Front 2,820 lbs. 2,600 lbs. 2,600 lbs. 2,870 lbs. 2,740 lbs.
Unloaded Rear 4,480 lbs. 5,580 lbs. 5,580 lbs. 6,570 lbs. 7,180 lbs.
Tires
TIRES FG20ST-16 FG25ST-16 FG25SHT-16 FG30SHT-16 FG32SHT-16
Tire Type Cushion Cushion Cushion Cushion Cushion
Tire Size - Front 21 x 7 x 15 in 21 x 7 x 15 in 21 x 7 x 15 in 21 x 8 x 15 in 21 x 8 x 15 in
Rear 16.25 x 5 x 11.25 in 16.25 x 5 x 11.25 in 16.25 x 5 x 11.25 in 16.25 x 6 x 11.25 in 16.25 x 6 x 11.25 in
Number of Wheels, Front/Rear 2x / 2 2x / 2 2x / 2 2x / 2 2x / 2
Tread - Front 34.6 in 34.6 in 34.6 in 35.2 in 35.2 in
Rear 35.4 in 35.4 in 35.4 in 34.8 in 34.8 in
Dimensions
DIMENSIONS FG20ST-16 FG25ST-16 FG25SHT-16 FG30SHT-16 FG32SHT-16
Tilting Angle - 2 stage masts, Forward/Backward 6 / 8 deg 6 / 8 deg 6 / 8 deg 6 / 8 deg 6 / 8 deg
Tilting Angle - 3 stage masts, Forward/Backward 6 / 5 deg 6 / 5 deg 6 / 5 deg 6 / 5 deg 6 / 5 deg
Mast Height , Lowered 85.5 in 85.5 in 85.5 in 85.5 in 88.5 in
Mast Height, Extended 176 in 176 in 176 in 176 in 176 in
Free Lift Height 5.5 in 5.5 in 5.5 in 5.5 in 5.5 in
Maximum Fork Height 128 in 128 in 128 in 128 in 128 in
Height Overhead Guard 80.9 in 80.9 in 80.9 in 80.9 in 80.9 in
Length, with Standard Forks 132.9 in 135.4 in 135.4 in 137.8 in 139.2 in
Length to Fork Face 90.7 in 93.3 in 93.3 in 95.7 in 97 in
Overall Width at Drive Tires 42.1 in 42.1 in 42.1 in 43.3 in 43.3 in
Forks,
Thickness x Width x Length		 1.6 x 4 x 42 in 1.6 x 4 x 42 in 1.6 x 4 x 42 in 2 x 5 x 42 in 2 x 6 x 42 in
Carriage Width/ITA Class 37 in / II 37 in / II 37 in / II 37 in / III 37 in / III
Ground Clearance, Under Mast 5.5 in 5.5 in 5.5 in 5.5 in 5.5 in
Ground Clearance, Center of Wheelbase 3.9 in 3.9 in 3.9 in 3.9 in 3.9 in
Right Angle Stacking Aisle 92.5 in 94.5 in 94.5 in 98.8 in 100 in
Turning Radius, Outside 75.6 in 77.6 in 77.6 in 81.5 in 82.7 in
Performance
PERFORMANCE FG20ST-16 FG25ST-16 FG25SHT-16 FG30SHT-16 FG32SHT-16
Travel Speed,
Loaded/Unloaded		 10.6 / 10.6 mph 10.6 / 10.6 mph 10.6 / 10.6 mph 10.6 / 10.6 mph 10.6 / 10.6 mph
Lifting Speed,
Loaded/Unloaded		 120 / 124 fpm 120 / 124 fpm 120 / 124 fpm 104.3 / 124 fpm 104.3 / 108 fpm
Lowering Speed,
Loaded/Unloaded		 98 / 98 fpm 98 / 98 fpm 98 / 98 fpm 98 / 98 fpm 98 / 98 fpm
Maximum Drawbar Pull,
Loaded		 4,300 lbs. 4,300 lbs. 5,500 lbs. 5,500 lbs. 5,200 lbs.
Maximum Gradeability 36% 30% 39% 31% 28.5%
Service Brake,
Operation/Control		 Foot / Hydraulic Foot / Hydraulic Foot / Hydraulic Foot / Hydraulic Foot / Hydraulic
Parking Brake,
Operation/Control		 Hand / Mechanic Hand / Mechanic Hand / Mechanic Hand / Mechanic Hand / Mechanic
Steering Type FHPS FHPS FHPS FHPS FHPS
Drive
DRIVE FG20ST-16 FG25ST-16 FG25SHT-16 FG30SHT-16 FG32SHT-16
Engine Manufacturer /
Engine Model		 GCT / K21 GCT / K21 GCT / K25 GCT / K25 GCT / K25
Rated Output
(SAE Net)		 54 HP @ 2,700 rpm 54 HP @ 2,700 rpm 60 HP @ 2,700 rpm 60 HP @ 2,700 rpm 60 HP @ 2,700 rpm
Maximum Torque
(SAE Net)		 111 lbs.-ft. @ 2,000 rpm 111 lbs.-ft. @ 2,000 rpm 136 lbs.-ft. @ 2,000 rpm 136 lbs.-ft. @ 2,000 rpm 136 lbs.-ft. @ 2,000 rpm
# of Cylinders /
Displacement		 4 / 126 cu in 4 / 126 cu in 4 / 152 cu in 4 / 152 cu in 4 / 152 cu in
Other
OTHER FG20ST-16 FG25ST-16 FG25SHT-16 FG30SHT-16 FG32SHT-16
Relief Pressure,
Maximum		 2,630 psi 2,630 psi 2,630 psi 2,630 psi 2,630 psi
Transmission Powershift Powershift Powershift Powershift Powershift
Sound Level 82 dB 82 dB 83 dB 83 dB 83 dB
