Xe nâng điện ngồi lái komatsu 2.0-3.2 Tấn

Xe nâng điện ngồi lái komatsu 2.0-3.2 Tấn

  • BBX50 Series
  • Japan
Vui lòng liên hệ
Còn hàng

Xe nâng điện ngồi lái komatsu 2.0-3.2 Tấn,FB20SHU-6, FB30SHU-6, FB25SHGU-6, FB32SHU-6

Thêm vào giỏ hàng

BBX50 Series

  • Tire typeCushion
  • Power typeElectric (36 V/48 V battery)
  • Capacity4,000 - 6,500 lbs.
View all specs
Request a quote Find a dealer
Download brochure



Features and benefits

Total AC_Forklift.png

One charge does a lot

Total AC drive means longer run times between charges. Move more loads more quickly with a machine with maintenance-free traction and hydraulic motors, no power steering motor, a power save function and added capacity.

Built construction strong

Exceptional performance with outstanding durability, reliability and quality. The BBX50 Series draws on 100 years of heavy equipment manufacturing experience. Komatsu Engineering Standards continually push our products to exceed industry standards.

Designed to boost uptime

An electric machine means fewer moving parts. Easy-access panels offer fast daily checks and maintenance and an onboard AC master controller provides self-diagnostics to expedite troubleshooting and repairs.

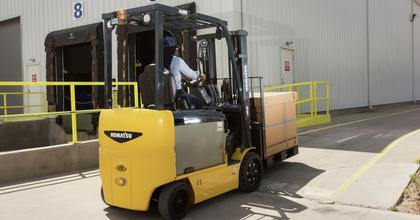

Cleaner and greener

Quiet, no emissions, and with outstanding control to reduce product damage, it’s perfect for indoor use and freezer/food transport. The rigorously engineered BBX50 offers a legitimate alternative to internal combustion forklifts, even for higher performance material handling.

Highly adaptable

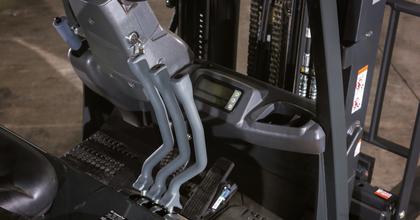

Extremely versatile, offering options like a larger battery model for more power, an “EE-” rated version for handling hazardous materials, and a dual-voltage 36- or 48-volt system. Multi-purpose display and programming panel provide exceptional value and lots of application flexibility.

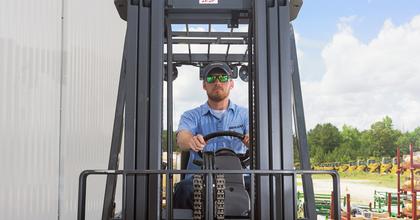

Designed for comfort

A forklift is only as good as its operator. Features an ergonomic cockpit, EZ view mast, and very little noise and vibration. Add a host of technician-adjustable metrics for a versatile platform that you can dial in to suit your specific application.

Specifications for BBX50

Expand all
US systemMetric
General
GENERAL FB20SHU-6 FB20SHGU-6  FB25SHU-6 FB25SHGU-6 FB30SHU-6 FB32SHU-6
Power type Electric (36 V/48 V) Electric (36 V/48 V)  Electric (36 V/48 V) Electric (36 V/48 V) Electric (36 V/48 V) Electric (36 V/48 V)
Operation type Sit-Down Sit-Down  Sit-Down Sit-Down Sit-Down Sit-Down
Capacity @ 24 in (600 mm) load center 4,000 lbs. 4,000 lbs. 5,000 lbs. 5,000 lbs. 6,000 lbs. 6,500 lbs.
Load distance from center axle (2 stage) 17 in 17 in  17 in 17 in 17.4 in 17.4 in
Load distance from center axle (3 stage) 17 in 17 in 17 in 17 in  17.4 in 17.4 in
Wheelbase 51.2 in 58.3 in 51.2 in 58.3 in 58.3 in 58.3 in
Weight
WEIGHT FB20SHU-6 FB20SHGU-6  FB25SHU-6 FB25SHGU-6 FB30SHU-6 FB32SHU-6
Service Weight 8,930 lbs. 9,100 lbs.  9,610 lbs. 9,670 lbs. 10,680 lbs. 11,315 lbs.
Tires
TIRES FB20SHU-6 FB20SHGU-6  FB25SHU-6 FB25SHGU-6 FB30SHU-6 FB32SHU-6
Tire type Cushion Cushion  Cushion Cushion Cushion Cushion
Tire size - front 21 x 7 x 15 in 21 x 8 x 15 in  21 x 7 x 15 in 21 x 8 x 15 in 21 x 8 x 15 in 21 x 8 x 15 in
Tire size - rear 16 x 5 x 10.5 in 16 x 6 x 10.5 in  16 x 6 x 10.5 in 16 x 6 x 10.5 in 16 x 6 x 10.5 in 16 x 6 x 10.5
Number of wheels, front/rear 2x / 2 2x / 2  2x / 2 2x / 2 2x / 2 2x / 2
Tread - front 34.8 in 35.4 in 34.8 in 35.4 in 35.4 in 35.4 in
Tread - rear 35.6 in 35.0 in  35.0 in 35.0 in 35.0 in 35.0 in
Dimensions
DIMENSIONS FB20SHU-6 FB20SHGU-6  FB25SHU-6 FB25SHGU-6 FB30SHU-6 FB32SHU-6
Tilting angle, 2-stage (FV) masts, forward/backward 6 / 8 deg 6 / 8 deg  6 / 8 deg 6 / 8 deg 6 / 8 deg 6 / 8 deg
Tilting angle, 3-stage (FV) masts, forward/backward  6 / 5 deg  6 / 5 deg  6 / 5 deg  6 / 5 deg  6 / 5 deg  6 / 5 deg
Mast height, lowered (2-stage std. mast) 85.5 in 85.5 in  85.5 in 85.5 in 85.5 in 88.5 in
Mast height, extended (2-stage std. mast) 176.0 in 176.0 in  176.0 in 176.0 in 176.0 in 176.0 in
Maximum fork height (2-stage std. mast) 128.0 in 128.0 in 128.0 in 128.0 in 128.0 in 128.0 in
Free lift height (2-stage std. mast) 5.5 in 5.5 in  5.5 in 5.5 in 5.5 in 5.5 in
Height overhead guard 86.6 in 87.8 in  86.8 in 87.8 in 87.8 in 87.8 in
Length to fork face (2-stage mast) 80.5 in 87.6 in  81.3 in 87.6 in 88.8 in 89.8 in
Length to fork face (3-stage mast)  80.5 in  87.6 in  81.3 in  87.6 in 88.8 in  89.8 in
Overall width, at drive tires 41.7 in 43.3 in  41.7 in 43.3 in 43.3 in 43.3 in
Forks, thickness x width x length 1.6 x 3.9 x 42.1 in 1.6 x 3.9 x 42.1 in  1.6 x 3.9 x 42.1 in 1.6 x 3.9 x 42.1 in 2.0 x 4.9 x 42.1 in 2.0 x 4.9 x 42.1 in
Carriage width/ITA class 37.0 in / II 37.0 in / II  37.0 in / II 37.0 in / II 37.0 in / III 37.0 in / III
Ground clearance, under 2-stage std. mast 5.5 in 5.5 in  5.5 in 5.5 in 5.5 in 5.5 in
Ground clearance, under 3-stage std. mast  5.5 in 5.5 in  5.5 in 5.5 in  5.5 in  5.5 in
Ground clearance, center of wheelbase 4.1 in 4.1 in  4.1 in 4.1 in 4.1 in 4.1 in
Right angle stacking aisle (2-stage mast) 87.0 in 92.9 in  87.8 in 92.9 in 94.5 in 96.1 in
Right angle stacking aisle (3-stage mast)  87.0 in  92.9 in  87.8 in  92.9 in  94.5 in  96.1 in
Turning radius, outside 70.1 in 76.0 in  70.9 in 76.0 in 77.0 in 78.5 in
Battery compartment: width x length x height 38.8 x 29.1 x 23.8 in 38.8 x 36.2 x 23.8 in  38.8 x 29.1 x 23.8 in 38.8 x 36.2 x 23.8 in 38.8 x 36.2 x 23.8 in 38.8 x 36.2 x 23.8 in
Performance
PERFORMANCE FB20SHU-6 FB20SHGU-6  FB25SHU-6 FB25SHGU-6 FB30SHU-6 FB32SHU-6
Travel speed, forward, loaded/unloaded

36 V: 8.7 / 9.3 mph
48 V: 10.6 / 10.9 mph

 36 V: 8.7 / 9.3 mph
48 V: 10.6 / 10.9 mph		 36 V: 8.4 / 9.0 mph
48 V: 9.9 / 10.9 mph		 36 V: 8.4 / 9.0 mph
48 V: 9.9 / 10.9 mph		 36 V: 8.1 / 8.7 mph
48 V: 9.3 / 10.6 mph		 36 V: 7.5 / 8.1 mph
48 V: 9.3 / 10.3 mph
Lifting speed, loaded/unloaded (2-stage mast) 36 V: 62.0 / 102.4 fpm
48 V: 82.7 / 126.0 fpm		 36 V: 62.0 / 106.3 fpm
48 V: 82.7 / 126.0 fpm 		 36 V: 57.1 / 106.3 fpm
48 V: 76.8 / 126.0 fpm		 36 V: 57.1 / 106.3 fpm
48 V: 76.8 / 126.0 fpm		 36 V: 51.2 / 104.3 fpm
48 V: 70.9 / 124.0 fpm		 36 V: 47.2 / 93.5 fpm
48 V: 65.0 / 110.2 fpm
Lifting speed, loaded/unloaded (3-stage mast) 36 V: 61.0 / 102.4 fpm
48 V: 81.7 / 122.0 fpm		 36 V: 61.0 / 102.4 fpm
48 V: 81.7 / 122.0 fpm		 36 V: 56.1 / 102.4 fpm
48 V: 75.8 / 122.0 fpm		 36 V: 56.1 / 102.4 fpm
48 V: 75.8 / 122.0 fpm		 36 V: 50.2 / 100.4 fpm
48 V: 69.9 / 120.1 fpm		 36 V: 45.3 / 82.7 fpm
48 V: 63.0 / 104.3 fpm
Lowering speed, loaded/unloaded (2-stage mast) 36 V: 98.0 / 98.0 fpm
48 V: 98.0 / 98.0 fpm		 36 V: 98.0 / 98.0 fpm
48 V: 98.0 / 98.0 fpm 		 36 V: 98.0 / 98.0 fpm
48 V: 98.0 / 98.0 fpm		 36 V: 98.0 / 98.0 fpm
48 V: 98.0 / 98.0 fpm		 36 V: 98.0 / 98.0 fpm
48 V: 98.0 / 98.0 fpm		 36 V: 98.0 / 98.0 fpm
48 V: 98.0 / 98.0 fpm
Lowering speed, loaded/unloaded (3-stage mast)  36 V: 94.5 / 94.5 fpm
48 V: 94.5 / 94.5 fpm 		 36 V: 94.5 / 94.5 fpm
48 V: 94.5 / 94.5 fpm		 36 V: 94.5 / 94.5 fpm
48 V: 94.5 / 94.5 fpm 		 36 V: 94.5 / 94.5 fpm
48 V: 94.5 / 94.5 fpm		 36 V: 94.5 / 94.5 fpm
48 V: 94.5 / 94.5 fpm		 36 V: 94.5 / 94.5 fpm
48 V: 94.5 / 94.5 fpm
Max. drawbar pull, loaded 3,370 lbs. 3,370 lbs.  3,370 lbs.  3,370 lbs.  3,370 lbs. 3,370 lbs.
Max. gradeability, loaded & unloaded at 1mph 25 % 25 %  21% 21% 17% 17%
Service brake, operation/control Foot / Hydraulic Foot / Hydraulic  Foot / Hydraulic Foot / Hydraulic Foot / Hydraulic Foot / Hydraulic
Parking brake, operation/control Hand / Mechanical Hand / Mechanical  Hand / Mechanical Hand / Mechanical Hand / Mechanical Hand / Mechanical
Steering, type Hydraulic Hydraulic  Hydraulic Hydraulic Hydraulic Hydraulic
Drive
DRIVE FB20SHU-6 FB20SHGU-6  FB25SHU-6 FB25SHGU-6 FB30SHU-6 FB32SHU-6
Drive motor, 60 minute rating 36 V: 13.5 HP
48 V: 18.0 HP		 36 V: 13.5 HP
48 V: 18.0 HP		 36 V: 13.5 HP
48 V: 18.0 HP		 36 V: 13.5 HP
48 V: 18.0 HP		 36 V: 13.5 HP
48 V: 18.0 HP		 36 V: 13.5 HP
48 V: 18.0 HP
Pump motor, 5 minute rating 36 V: 14.6 HP
48 V: 19.6 HP		 36 V: 14.6 HP
48 V: 19.6 HP		 36 V: 14.6 HP
48 V: 19.6 HP		 36 V: 14.6 HP
48 V: 19.6 HP		 36 V: 14.6 HP
48 V: 19.6 HP		 36 V: 14.6 HP
48 V: 19.6 HP
Battery voltage 36 V
48 V		 36 V
48 V		 36 V
48 V		 36 V
48 V		 36 V
48 V		 36 V
48 V
Battery capacity, minimum 36 V: 675 Ah/6 hr
48 V: 525 Ah/6 hr		 36 V: 900 Ah/6 hr
48 V: 675 Ah/6 hr 		 36 V: 675 Ah/6 hr
48 V: 525 Ah/6 hr 		 36 V: 900 Ah/6 hr
48 V: 675 Ah/6 hr		 36 V: 900 Ah/6 hr
48 V: 675 Ah/6 hr		 36 V: 900 Ah/6 hr
48 V: 675 Ah/6 hr
Battery capacity, maximum 36 V: 1,210 Ah/6 hr
48 V: 880 Ah/6 hr		 36 V: 1,650 Ah/6 hr
48 V: 1,210 Ah/6 hr 		 36 V: 1,210 Ah/6 hr
48 V: 880 Ah/6 hr 		 36 V: 1,650 Ah/6 hr
48 V: 1,210 Ah/6 hr 		 36 V: 1,650 Ah/6 hr
48 V: 1,210 Ah/6 hr 		 36 V: 1,650 Ah/6 hr
48 V: 1,210 Ah/6 hr
Battery weight, minimum 2,430 lbs. 3,000 lbs. 2,430 lbs. 3,000 lbs. 3,000 lbs. 3,300 lbs.
Battery weight, maximum 2,820 lbs. 3,800 lbs.  2,820 lbs. 3,800 lbs. 3,800 lbs. 3,800 lbs.
Other
OTHER FB20SHU-6 FB20SHGU-6  FB25SHU-6 FB25SHGU-6 FB30SHU-6 FB32SHU-6
Drive motor control AC FET. Inverter AC FET. Inverter  AC FET. Inverter  MOSFET AC Inverter MOSFET AC Inverter MOSFET AC Inverter
Relief pressure, maximum 2,698 psi 2,698 psi  2,698 psi  2,698 psi  2,698 psi  2,698 psi
Hydraulic tank capacity 7.1 US gal 7.1 US gal  7.1 US gal 7.1 US gal 7.1 US gal 7.1 US gal
