Xe nâng điện ngồi lái komatsu 1.5-2.5T FB15U-12, FB18U-12, FB20AU-12

Thêm vào giỏ hàng

Xe nâng điện ngồi lái komatsu 1.5-2.5T (AE50 Series)

  • Tire typeCushion/solid pneumatic
  • Power typeElectric (48 V battery)
  • Capacity3,000 - 4,000 lbs.
View all specs
Request a quote Find a dealer
Download brochure



Features and benefits

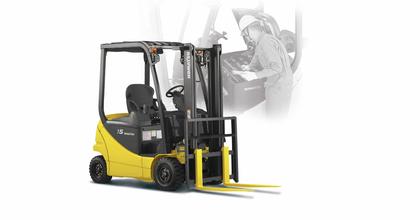

Forklift_literature link_FB15_AM50_e_4-5p.eps

Exceptional durability

Engineered to help lower your downtime, even in harsh conditions. The AE50 series meets IP X4 waterproof standards, and offers airtight wet disc brakes, AC motors that minimize motor brush/contact checks or replacements, weather-resistant controls and more.
Forklift_literature link_tire_zumen6P.eps

A braking system for all seasons

You need dependable braking. Unlike conventional drum and shoe braking systems, Komatsu’s airtight wet disc brake system can go up to 10,000 hours with minimal maintenance in most working environments.

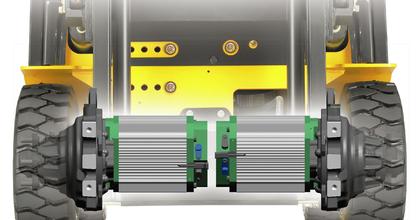

Forklift_literature link_FB_AM50_Bure ki.eps

High performance from Total AC

High performance while helping to minimize costs. The Total AC system utilizes advanced AC drive motors and an AC hydraulic motor to provide high operating efficiency, long operating life and longer run times than conventional DC-type motors.
Forklift_AM50_Literature link_FB4_Dual Drive_AEAM50.psd

Engine-like power

With all-around Dual Drive, the two front wheels are driven by independent AC drive motors for power and speed comparable to that of an engine-powered truck. And Dual Drive is built to provide great performance even in tough surface conditions.
Forklift_literature link_FB_AM50_15.eps

Nimble controls for more precision

AE50 controllers are designed to be light, compact, and simple to use to help improve your operator’s efficiency and precision. The controller itself is thoroughly tested for reliability and housed in a compartment that can resist dust, water and other contaminants.
Forklift_literature link_AE50_IPx4.JPG

Designed to IP X4 water-resistant standards

All AE50 models are designed to meet IP X4 International water-resistant standards, down to their control micro-switches, potentiometers and control signal circuits. They can be used in coolers, freezers, outdoors, and washed down when needed.

Specifications for AE50

Expand all
US systemMetric
General
GENERAL FB15U-12 FB18U-12 FB20AU-12
Power Type Electric  Electric  Electric
Operation Type Sit-Down Sit-Down Sit-Down
Capacity @ 24 in (600 mm) Load Center 3,000 lbs. 3,500 lbs. 4,000 lbs.
Load Distance  From Center Axle (2 Stage) 15.9 in 15.9 in 17.7 in
Wheelbase 55.5 in 55.5 in 57.9 in
Weight
WEIGHT FB15U-12 FB18U-12 FB20AU-12
Service Weight 6,910 lbs. 7,440 lbs. 8,370 lbs.
Axle Loading - Loaded Front 8,740 lbs. 9,620 lbs. 10,940 lbs.
Axle Loading - Loaded Rear 1,170 lbs. 1,320 lbs. 1,430 lbs.
Axle Loading - Unloaded Front 3,510 lbs. 3,520 lbs. 4,020 lbs.
Axle Loading - Unloaded Rear 3,400 lbs. 3,920 lbs. 4,350 lbs.
Tires
TIRES FB15U-12 FB18U-12 FB20AU-12
Tire Type Solid Pneumatic Solid Pneumatic Solid Pneumatic
Tire Size - Front 18 x 7-8 18 x 7-8 200/500 - 10
Tire Size - Rear 16 x 6-8 16 x 6-8 18 x 6-8
Number of Wheels, Front/Rear 2x / 2 2x / 2 2x / 2
Tread - Front 37.0 in 37.0 in 37.4 in
Tread - Rear 34.1 in 34.1 in 34.1 in
Dimensions
DIMENSIONS FB15U-12 FB18U-12 FB20AU-12
Tilting Angle, Forward/Backward 6 / 10 deg 6 / 10 deg 6 / 10 deg
Mast Height - Lowered 84.4 in 84.4 in 89 in
Mast Height - Extended 167.5 in 167.5 in 168.1 in
Free Lift Height 5.9 in 5.9 in 6.7 in
Maximum Fork Height 129.9 in 129.9 in 129.9 in
Height Overhead Guard 81.5 in 81.5 in 81.5 in
Length, with Standard Forks 123.2 in 120.9 in 128 in
Length to Fork Face 81.1 in 78.7 in 85.8 in
Overall Width at Drive Tires 43.7 in 43.8 in 45.7 in
Forks, Thickness x Width x Length 1.4 x 3.9 x 42.1 in 1.4 x 3.9 x 42.1 in 1.4 x 4.8 x 42.1 in
Carriage Width/ITA Class 38.2 in / II 38.2 in / II 38.2 in / II
Ground Clearance, Under Mast 3.7 in 3.7 in 3.7 in
Ground Clearance, Center of Wheelbase 4.9 in 4.9 in 4.9 in
Right Angle Stacking Aisle 124.4 / 132.2 in 122.8 / 127.7 in 129.1 / 136.9 in
Turning Radius, Outside 68.9 in 62.6 in 72.8 in
Performance
PERFORMANCE FB15U-12 FB18U-12 FB20AU-12
Travel Speed, Loaded/Unloaded 10.0 / 11.0 mph 10.0 / 11.0 mph 9.0 / 10.0 mph
Lifting Speed, Loaded/Unloaded 66.9 / 118.1 fpm 63.0 / 118.1 fpm 55.1 / 98.4 fpm
Lowering Speed, Loaded/Unloaded 88.6 / 108.3 fpm 88.6 / 108.3 fpm 72.8 / 86.6 fpm
Maximum Drawbar Pull, Loaded 2,150 lbs. 2,150 lbs. 2,040 lbs.
Maximum Gradeability 19% 16% 14%
Service Brake, Operation/Control Foot / Hydraulic Foot / Hydraulic Foot / Hydraulic
Parking Brake, Operation/Control Hand / Mechanical Hand / Mechanical Hand / Mechanical
Steering Type Fully Hydrostatic Power Steering Fully Hydrostatic Power Steering Fully Hydrostatic Power Steering
Drive
DRIVE FB15U-12 FB18U-12 FB20AU-12
Drive Motor (AC) 6.0 x 2 HP 6.0 x 2 HP 6.0 x 2 HP
Pump Motor (AC) 12.1 HP 12.1 HP 12.1 HP
Battery Voltage 48 V 48 V 48 V
Battery Capacity, Maximum 600 Ah/6hr 600 Ah/6hr 600 Ah/6hr
Minimum Battery Weight 1,590 lbs. 1,590 lbs. 1,680 lbs.
Maximum Battery Weight 2,100 lbs. 2,100 lbs. 2,100 lbs.
Other
OTHER FB15U-12 FB18U-12 FB20AU-12
Drive Motor Control AC Inverter AC Inverter AC Inverter
Relief Pressure - Attachment 2,300 psi 2,300 psi 2,300 psi
Hydraulic Oil Capacity 6.1 US gal 6.1 US gal 6.1 US gal
