Xe nâng điện ngồi lái komatsu 1.5-2.0T 3 bánh, FB15U-12, FB18U-12, FB20AU-12

Thêm vào giỏ hàng

Xe nâng điện ngồi lái komatsu 1.5-2.0T (3 bánh) AM50 Series

  • Tire typeCushion/solid pneumatic
  • Power typeElectric (48 V battery)
  • Capacity3,000 - 4,000 lbs.
View all specs
Request a quote Find a dealer
Download brochure



Features and benefits

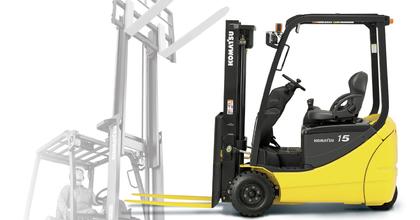

Forklift_literature link_FB15_AM50_6-7-1.eps

Exceptional durability

Limit your downtime even in harsh conditions. The AM50 series forklifts meet IP-X4 water-resistant standards and offer airtight, wet disc brakes, AC motors that eliminate motor brush/contact checks or replacements, weather-resistant controls and more.

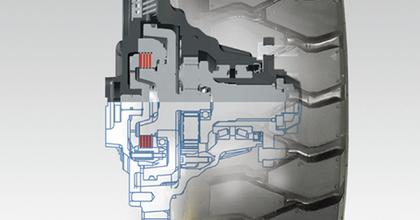

Forklift_literature link_tire_zumen6P.eps

A braking system for all seasons

An airtight, wet disc brake system assures dependable braking in most working environments. Unlike conventional drum-and-shoe braking systems, Komatsu’s wet disc brake system can go up to 10,000 hours with little more than oil changes.

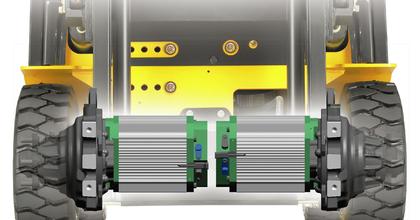

Forklift_literature link_FB_AM50_Bure ki.eps

High performance from Total AC

Achieve high performance with minimal costs with an AC system that utilizes advanced AC drive motors and an AC hydraulic motor. The Total AC system’s AC motors provide high operating efficiency, long operating life and longer run times than conventional DC-type motors.

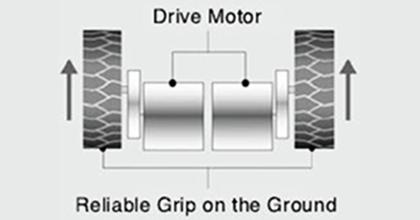

Forklift_AM50_Literature link_FB4_Dual Drive_AEAM50.psd

More power for higher productivity

When you need great performance in bad surface conditions. All-around Dual Drive means the two front wheels are driven by independent AC drive motors for power and speed comparable to that of an engine-powered truck.

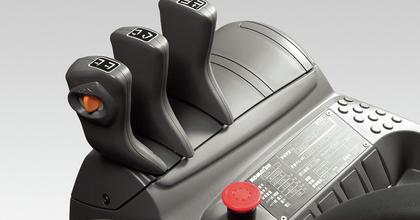

Forklift_literature link_FB_AM50_15.eps

Nimble controls for more precision

Efficiency and precision from controllers designed to be light, compact, and simple to use. The controller itself is reliability tested and housed in a compartment that resists dust, water and other contaminants.

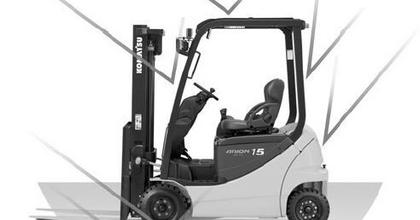

Forklift_literature link_AE50_IPx4.JPG

Designed to IPX4 Standards

A forklift for coolers, freezers, the outdoors, and that can be safely washed down when needed. AM50 models are designed to meet IP-X4 water-resistant standards, down to the control micro-switches, potentiometers and control signal circuits.

Specifications for AM50

Expand all
US systemMetric
General
GENERAL FB15U-12 FB18U-12 FB20AU-12
Power Type Electric  Electric  Electric
Operation Type Sit-Down Sit-Down Sit-Down
Capacity @ 24 in (600mm) Load Center 3,000 lbs. 3,500 lbs. 4,000 lbs.
Load Distance  From Center Axle (2 Stage) 15.9 in 15.9 in 17.7 in
Wheelbase 52.8 in 54.7 in 58.5 in
Weight
WEIGHT FB15U-12 FB18U-12 FB20AU-12
Service Weight 7,010 lbs. 7,640 lbs. 8,600 lbs.
Axle Loading - Loaded Front 8,760 lbs. 9,700 lbs. 11,070 lbs.
Axle Loading - Loaded Rear 1,250 lbs. 1,440 lbs. 1,530 lbs.
Axle Loading - Unloaded Front 3,420 lbs. 3,570 lbs. 4,190 lbs.
Axle Loading - Unloaded Rear 3,590 lbs. 4,070 lbs. 4,410 lbs.
Tires
TIRES FB15U-12 FB18U-12 FB20AU-12
Tire Type Cushion Cushion Cushion
Tire Size - Front 18 x 7 x 12.13 18 x 7 x 12.13 18 x 8 x 12.13
Tire Size - Rear 15 x 5 x 11.25 15 x 5 x 11.25 15 x 5 x 11.25
Number of Wheels, Front/Rear 2x / 2 (dual) 2x / 2 (dual) 2x / 2 (dual)
Tread - Front 37.0 in 37.0 in 37.4 in
Tread - Rear 6.7 in 6.7 in 6.7 in
Dimensions
DIMENSIONS FB15U-12 FB18U-12 FB20AU-12
Tilting Angle, Forward/Backward 6 / 10 deg 6 / 10 deg 6 / 10 deg
Mast Height - Lowered 84.4 in 84.4 in 89 in
Mast Height - Extended 167.5 in 167.5 in 168.1 in
Free Lift Height 5.9 in 5.9 in 6.7 in
Maximum Fork Height 129.9 in 129.9 in 129.9 in
Height Overhead Guard 81.5 in 81.5 in 81.5 in
Length, with Standard Forks 118.3 in 120.9 in 125.4 in
Length to Fork Face 76.2 in 78.7 in 83.3 in
Overall Width at Drive Tires 43.8 in 43.8 in 45.8 in
Forks, Thickness x Width x Length 1.4 x 3.9 x 42.1 in 1.4 x 3.9 x 42.1 in 1.4 x 4.8 x 42.1 in
Carriage Width/ITA Class 38.2 in / II 38.2 in / II 38.2 in / II
Ground Clearance, Under Mast 3.7 in 3.7 in 3.7 in
Ground Clearance, Center of Wheelbase 4.9 in 4.9 in 4.9 in
Right Angle Stacking Aisle 120.5 / 125.3 in 122.8 / 127.7 in 127.4 in / 132.4 in
Turning Radius, Outside 60.2 in 62.6 in 66.5 in
Performance
PERFORMANCE FB15U-12 FB18U-12 FB20AU-12
Travel Speed, Loaded/Unloaded 10.0 / 11.0 mph 10.0 / 11.0 mph 9.0 / 10.0 mph
Lifting Speed, Loaded/Unloaded 66.9 / 118.1 fpm 63.0 / 118.1 fpm 55.1 / 98.4 fpm
Lowering Speed, Loaded/Unloaded 88.6 / 108.3 fpm 88.6 / 108.3 fpm 72.8 / 86.6 fpm
Maximum Drawbar Pull, Loaded 2,150 lbs. 2,150 lbs. 2,040 lbs.
Maximum Gradeability 19% 16% 14%
Service Brake, Operation/Control Foot / Hydraulic Foot / Hydraulic Foot / Hydraulic
Parking Brake, Operation/Control Hand / Mechanical Hand / Mechanical Hand / Mechanical
Steering Type Fully Hydrostatic Power Steering Fully Hydrostatic Power Steering Fully Hydrostatic Power Steering
Drive
DRIVE FB15U-12 FB18U-12 FB20AU-12
Drive Motor (AC) 6.0 x 2 HP 6.0 x 2 HP 6.0 x 2 HP
Pump Motor (AC) 12.1 HP 12.1 HP 12.1 HP
Battery Voltage 48 V 48 V 48 V
Battery Capacity, Maximum 600 Ah/6hr 600 Ah/6hr 600 Ah/6hr
Minimum Battery Weight 1,590 lbs. 1,590 lbs. 1,680 lbs.
Maximum Battery Weight 2,100 lbs. 2,100 lbs. 2,100 lbs.
Other
OTHER FB15U-12 FB18U-12 FB20AU-12
Drive Motor Control AC Inverter AC Inverter AC Inverter
Relief Pressure - Attachment 2,300 psi 2,300 psi 2,300 psi
Hydraulic Oil Capacity 6.1 US gal 6.1 US gal 6.1 US gal
