Xe nâng điện đứng lái 1.5 -2.3 Tấn

Xe nâng điện đứng lái 1.5 -2.3 Tấn

  • FR50 Series
  • Japan
Vui lòng liên hệ
Còn hàng

Xe nâng điện đứng lái 1.5 -2.3 Tấn FR15K-3, FR18K-3, FR23K-3

Thêm vào giỏ hàng

Xe nâng điện đứng lái komatsu 1.5-2.3 tấn FR50 Series

  • Tire typeCushion
  • Power typeElectric (36 V battery)
  • Capacity3,000 - 4,500 lbs.
View all specs
Request a quote Find a dealer
Download brochure



Features and benefits

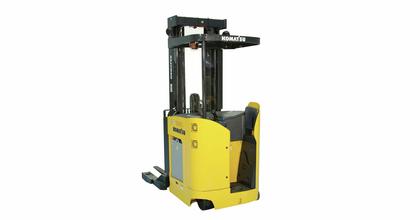

FR23K Narrow Aisle Forklift Reach.jpg

High performance with advanced AC

The FR50’s advanced and intelligent AC drive and hydraulic motor help control critical functions to extend run times, eliminate motor brush checks or replacements, and deliver higher efficiency and longer life versus DC motors.

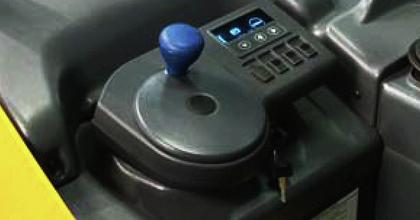

Forklift_Narrowaisle_Literature Link_dial in app needs_Asset 1.psd

Dial in your application needs

Performance settings can be adjusted using the onboard dash keypad to dial in optimal performance parameters for your application needs. In addition to diagnostics, the keypad displays state-of-battery charge, time of day and travel speed.

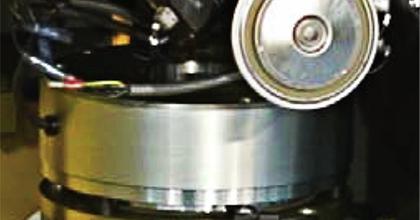

Forklift_narrow aisle_Literature link_regenerative braking_Asset 1.psd

Regenerative, maintenance-free braking

In addition to reversing the drive system to brake, the electromagnetic disc braking system provides smooth and consistent stops when releasing the brake pedal. Plus, it’s a regenerative system that re-captures current.

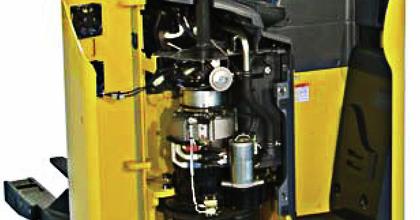

Forklift_narrowaisle_Literature Link_easy to service_Asset 1.psd

Fast and easy to service

Built-in analyzer provides data on fault detection and other diagnostics. The trucks’ design enables easy access to the control system and drive motor, drive unit, electrical disc brake, and steer-by-wire system, and facilitates fast wheel/tire changes.

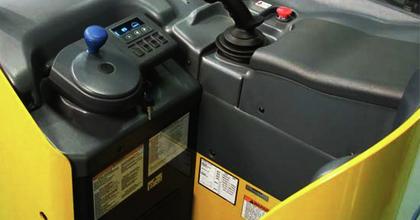

Forklift_Narrowaisle_literature link_precise control.psd

Precise control of heavy loads

Oil flow is precisely controlled through a combination of the truck controller and the proportional control valve. That allows for smooth, full-feathering of hydraulic movements and minimal shocks, ideal if you’re handling sensitive or fragile materials.

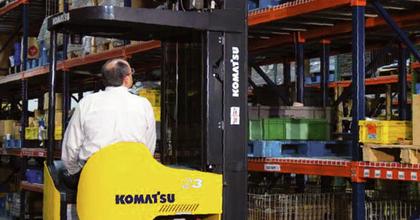

Forklift_narrowaisle_Literature Link_operator fatigue_Asset 1.psd

Designed to battle operator fatigue

Help your operators function at their best, even over long shifts. They’ll appreciate the low step height, cushioned floorboard and pedals, padded cockpit, excellent visibility and intuitive steer-by-wire multi-function control for effortless maneuvering.

Specifications for FR50

Expand all
US systemMetric
General
GENERAL FR18K-3 FR23K-3 FR15K-3
Power Type Electric Electric Electric
Operation Type Stand-Up Stand-Up Stand-Up
Capacity @ 24 in Load Center 3,500 lbs. 4,500 lbs. 3,000 lbs.
Weight
WEIGHT FR18K-3 FR23K-3 FR15K-3
Service Weight 6,005 lbs. 6,420 lbs. 6,715 lbs.
Tires and Wheels
TIRES & WHEEL FR18K-3 FR23K-3 FR15K-3
Drive Tire Size - Cushion Rubber 13 x 5.5 in 13 x 5.5 in 13 x 5.5 in
Caster Wheel Size - Dual Polyurethrane 7 x 2.87 in 7 x 2.87 in 7 x 2.87 in
Load Wheel Size - Tandem Polyurethrane x 2 5 x 4 in 5 x 4 in 5 x 4 in
Dimensions
DIMENSIONS FR18K-3 FR23K-3 FR15K-3
Tilting Angle, Forward/Backward 3 / 4 deg 3 / 4 deg 3 / 4 deg
Mast Height - Lowered 95 in 95 in 95 in
Mast Height - Extended 260.3 in 260.3 in 260.3 in
Free Lift Height 47.0 in 47.2 in 47 in
Maximum Fork Height 210 in 210 in 210 in
Height Overhead Guard 93.5 in 93.5 in 93.5 in
Length, with Standard Forks 96.1 in 97.6 in 103.9 in
Length to Fork Face - Carriage Retracted 54.1 in 55.6 in 61.9 in
Maximum Reach Stroke 22.8 in 22.4 in 40.2 in
 Overal width, truck frame 43 in 43 in 43 in
Overall Width, Outrigger I.D. (Min-Max) 33-50 in 33-50 in 33-50 in
Overall Width, Outrigger O.D. (Min-Max) 44-61 in 44-60 in 44-60 in
Forks, Thickness x Width x Length 1.5 x 4 x 42 in 1.75 x 4 x 42 in 1.5 x 4 x 42 in
Carriage Width/ITA Class 31.5 in / II 31.5 in / II 31.5 in / II
Step Height 9.3 in 9.3 in 9.3 in
Ground Clearance, Under Mast 2 in 2 in 2 in
Ground Clearance, Center of Wheelbase 2 in 2 in 2 in
Wheelbase 59 in 60.1 in 62 in
Right Angle Stacking Aisle 100 in 102 in 108 in
Turning Radius, Outside 69.4 in 70.4 in 72.4 in
Performance
PERFORMANCE FR18K-3 FR23K-3 FR15K-3
Travel Speed Loaded, Forks Leading/Trailing 6.4 / 7.2 mph 6.4 / 7.2 mph 6.4 / 7.2 mph
Travel Speed Unloaded, Forks Leading/Trailing 6.4 / 7.2 mph 6.4 / 7.2 mph 6.4 / 7.2 mph
Lifting Speed, Loaded/Unloaded 70 / 120 fpm 70 / 120 fpm 70 / 120 fpm
Lowering Speed, Loaded/Unloaded 95 / 87 fpm 95 / 87 fpm 95 / 95 fpm
Motors
MOTORS FR18K-3 FR23K-3 FR15K-3
Drive Motor (AC) 8 HP 8 HP 8 HP
Pump Motor (AC) 18.8 HP 18.8 HP 18.8 HP
Power Steering Motor (DC) 0.5 HP 0.5 HP 0.5 HP
Battery
BATTERY FR18K-3 FR23K-3 FR15K-3
Battery Voltage 36 V 36 V 36 V
Battery Capacity, Maximum 930 Ah/6hr 930 Ah/6hr 930 Ah/6hr
Battery Compartment, Length 16.4 in 16.4 in 16.4 in
Battery Compartment, Width 38.7 in 38.7 in 38.7 in
Battery Compartment, Height 32 in 32 in 32 in
Battery Weight, Minumum 2,060 lbs. 2,060 lbs. 2,060 lbs.
Battery Weight, Maximum 2,305 lbs. 2,305 lbs. 2,305 lbs.
