Xe nâng dầu komatsu 3.5 -5 Tấn

Mã sản phẩm: FH35/50-2
Thương hiệu: Japan

Vui lòng liên hệ

Tình trạng: Còn hàng

Xe nâng dầu komatsu 3.5 -5 Tấn, FH35-2, FH40-2, FH45-2, FH50-2

Thêm vào giỏ hàng

Chi tiết sản phẩm
Hướng dẫn mua hàng
Bình luận

FH35/50-2

Tire typePneumatic
Power typeDiesel
Capacity8,000 - 11,000 lbs.

View all specs

Request a quote Find a dealer

Download brochure

Features and benefits

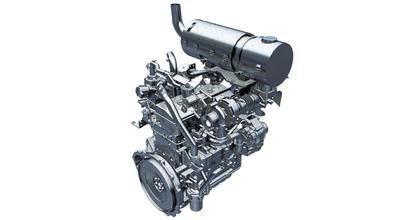

Forklift_literature link_FH35-50_engine_CMYK.psd

Highly efficient proprietary diesel technology

The FH family diesel engines are EPA certified Tier 4 Final, designed to reduce fuel use and significantly reduce exhaust particulate matter. They incorporate Komatsu proprietary technologies like Komatsu Diesel Oxidation Catalyst, variable flow turbocharger and much more.

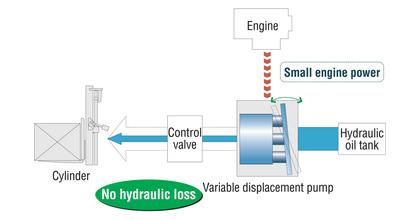

Forklift_Literature link_revving unnecessary_Asset 1_CLSS_FH50_e.eps

Makes engine revving unnecessary

Featuring a variable displacement pump with closed-center load sensing system, the FH family allows for controlled fluid flow in the hydraulic system while lifting, resulting in no engine revving and reduced fuel consumption.

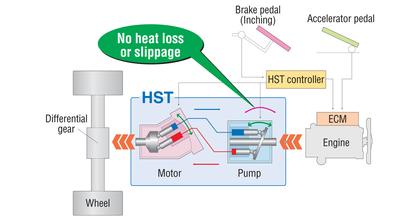

Forklift_Literature link_lower operating costs_Asset 1_HST_FH50_e.eps

Designed to lower operating costs

The highly efficient, electronically controlled hydrostatic transmission (HST) hydraulic pump and motor system increases operator control, minimizes power transmission loss, boosts fuel savings and reduces environmental impact.

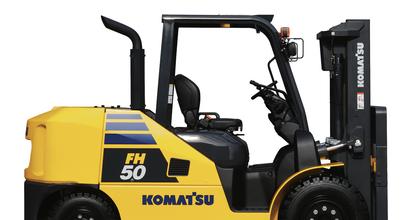

Forklift_literature link_FH50_2_04_2_kai_e.psd

Best-in-class warranty

Expect years of trouble-free service. But just in case, Komatsu stands behind the product with the longest and strongest warranty in the industry, up to 24 months and unlimited hours, 60mo/8k hours drive train. That’s coverage you can count on.

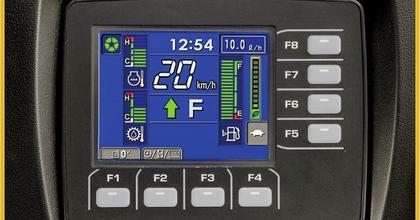

Forklift_FH35_50_literature link_Komtrax.psd

Technology that helps you manage your fleet

Komatsu’s Komtrax proprietary wireless tracking and reporting system allows the forklift to communicate daily usage, fuel consumption, operator productivity and more. Easy to use and web-based, it gives you secure usage data anywhere, anytime.

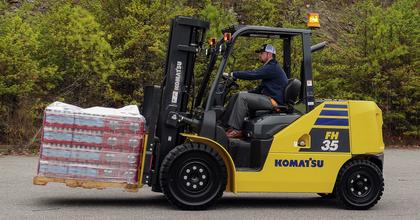

Forklift_FH35_50_literature link_FH-2_FH35-2_DSC07132E1.psd

Engineered to exacting standards

Komatsu Engineering Standards (KES) are design and manufacturing standards that exceed those required in the industry. Through KES, we strive to deliver unmatched quality and durability across all our mining, construction and forklift machines.

Specifications for FH35/50

Expand all

US systemMetric

Characteristics

Model	FH35-2	FH40-2	FH45-2	FH50-2
Power Type	Diesel	Diesel	Diesel	Diesel
Operation Type	Sitting	Sitting	Sitting	Sitting
Rated Capacity	8,000 lbs.	9,000 lbs.	10,000 lbs.	11,000 lbs.
Rated Load Center	24 in	24 in	24 in	24 in
Load Distance, Front Axle to Fork Face	24 in	24 in	24 in	24 in
Wheelbase	84.6 in	84.6 in	84.6 in	84.6 in

Weight

Model		FH35-2	FH40-2	FH45-2	FH50-2
Service Weight		13,426 lbs.	14,065 lbs.	14,980 lbs.	15,873 lbs.
Axle Loading	Loaded Front	19,081 lbs.	20,492 lbs.	21,925 lbs.	23,578 lbs.
	Loaded Rear	2,337 lbs.	2,557 lbs.	3,031 lbs.	3,263 lbs.
	Unloaded Front	6,724 lbs.	6,614 lbs.	6,504 lbs.	6,614 lbs.
	Unloaded Rear	6,702 lbs.	7,452 lbs.	8,477 lbs.	9,259 lbs.

Tires

Model		FH35-2	FH40-2	FH45-2	FH50-2
Tire Type		Pneumatic	Pneumatic	Pneumatic	Pneumatic
Tire Size	Front	300-15-18PR(I)	300-15-18PR(I)	300-15-18PR(I)	300-15-18PR(I)
	Rear	7.00-12-12PR(I)	7.00-12-12PR(I)	7.00-12-12PR(I)	7.00-12-12PR(I)
Number of Wheels, Front/Rear		2x/2	2x/2	2x/2	2x/2
Tread	Front	48.2 in	48.2 in	48.2 in	48.2 in
	Rear	44.1 in	44.1 in	44.1 in	44.1 in

Dimensions

Model		FH35-2	FH40-2	FH45-2	FH50-2
Tilting Angle, Forward/Backward		6 / 12 deg	6 / 12 deg	6 /12 deg	6 /12 deg
Mast Height	Lowered	96.5 in	96.5 in	96.5 in	98.5 in
	Extended	178 in	178 in	178 in	178 in
Standard Free Lift		6.9 in	6.9 in	6.9 in	6.9 in
Standard Lift Height		130 in	130 in	130 in	130 in
Height Overhead Guard		90.2 in	90.2 in	90.2 in	90.2 in
Length, with Standard Forks		168.1 in	169.9 in	171.5 in	171.7 in
Length to Fork Face		126 in	127.8 in	129.3 in	129.5 in
Overall Width at Drive Tires		59.8 in	59.8 in	59.8 in	59.8 in
Forks - Thickness x Width x Length		2.2 x 5.9 x 42.1 in	2.2 x 5.9 x 42.1 in	2.2 x 5.9 x 42.1 in	2.2 x 5.9 x 42.1 in
Fork Carriage Class		46.9 in	46.9 in	46.9 in	46.9 in
Ground Clearance, Under Mast		5.5 in	5.5 in	5.5 in	5.5 in
Ground Clearance, Center of Wheelbase		8.3 in	8.3 in	8.3 in	8.3 in
Aisle Width	L1000 x W1200 pallet	186.2 in	187.4 in	188.2 in	189.6 in
	L1200 x W800 pallet	191.3 in	192.5 in	193.3 in	196.7 in
Turning Radius, Outside		114.8 in	115.9 in	116.7 in	117.9 in

Performance

Model	FH35-2	FH40-2	FH45-2	FH50-2
Travel Speed, Loaded/Unloaded	14 mph 14.6 mph	14 mph 14.6 mph	14 mph 14.6 mph	14 mph 14.6 mph
Lifting Speed, Loaded/Unloaded	96.5 fpm 99.4 fpm	96.5 fpm 99.4 fpm	96.5 fpm 99.4 fpm	96.5 fpm 99.4 fpm
Lowering Speed, Loaded/Unloaded,	98.4 fpm	98.4 fpm	98.4 fpm	98.4 fpm
Maximum Drawbar Pull	7,644 lbs.	7,644 lbs.	7,644 lbs.	7,644 lbs.
Maximum Gradeability	33%	33%	29%	28%
Service Brake, Operation/Control	Foot/Hydraulic	Foot/Hydraulic	Foot/Hydraulic	Foot/Hydraulic
Parking Brake, Operation/Control	Hand/Mechanical	Hand/Mechanical	Hand/Mechanical	Hand/Mechanical
Steering Type	FHPS	FHPS	FHPS	FHPS

Engine

Model	FH35-2	FH40-2	FH45-2	FH50-2
Make / Model	Komatsu SAA4D95LE-6-C	Komatsu SAA4D95LE-6-C	Komatsu SAA4D95LE-6-C	Komatsu SAA4D95LE-6-C
Rated Output (SAE Net)	66.4 HP	66.4 HP	66.4 HP	66.4 HP
Maximum Torque (SAE Net)	212 lbs.-ft. @ 1,400 rpm	212 lbs.-ft. @ 1,400 rpm	212 lbs.-ft. @ 1,400 rpm	212 lbs.-ft. @ 1,400 rpm
No. of Cylinder / Displacement	4/199 in³	4/199 in³	4/199 in³	4/199 in³
Fuel Tank Capacity	27.7 gal	27.7 gal	27.7 gal	27.7 gal

Other

Model	FH35-2	FH40-2	FH45-2	FH50-2
Relief Pressure for Attachment	2,988 psi	2,988 psi	2,988 psi	2,988 psi
Hydraulic Tank Capacity	20.1 gal	20.1 gal	20.1 gal	20.1 gal
Transmission	Hydrostatic	Hydrostatic	Hydrostatic	Hydrostatic
